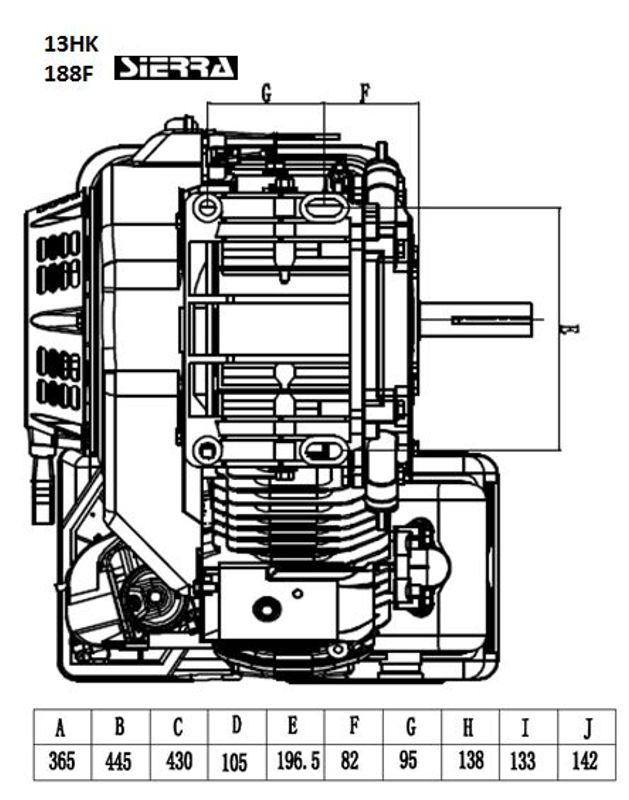

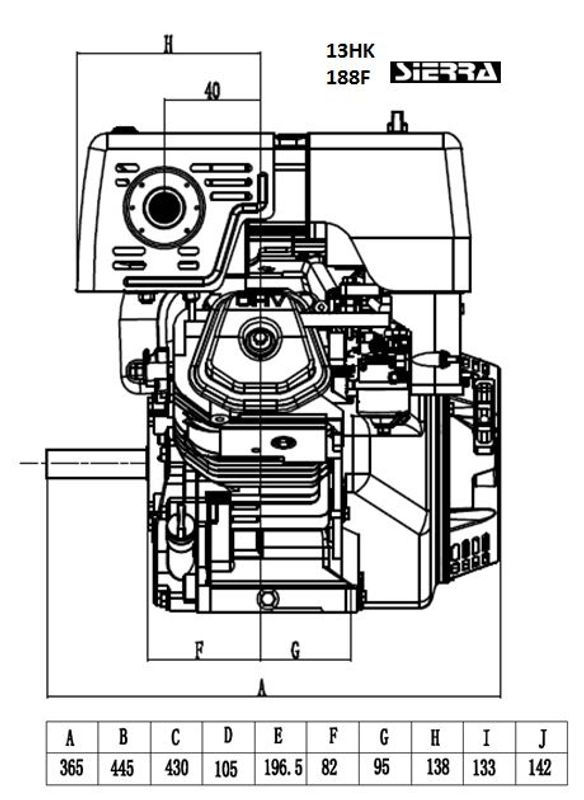

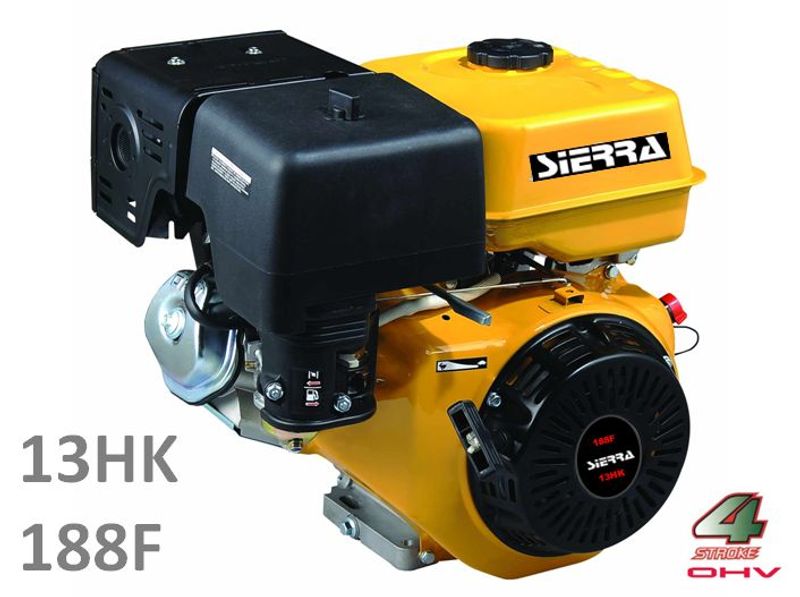

Industristandard 188F - 13HK OHV bensinmotor - 95 / 98 okt - se målsatte tegninger.
Klonemotor med samme mål som f.eks. Honda GX390 - alle deler går om hverandre.
Leveres i farge: rød & hvit
|
Model
|
Type 188F
|
|
| Engine Type |
(Air-cooled;4-stroke;OHV;single cylinder)
|
|
| Bore x Stroke |
88x64(mm)
|
|
| Displacement |
389cc |
|
| compression Ratio |
8:0:1
|
|
| Maximum Power Output |
(13HP)9.6kw
|
|
| Rated Power Output |
(11.7HP)8.6kw
|
|
| Maximum Torque |
26.5N.m
|
|
| ignition System |
Transistor magneto
|
|
| Starting System |
Recoil
|
|
| ENGINE Oil System Capacity |
1.1 Liters
|
|
| Fuel Capacity |
6.5 Liters
|
|
| Min.Fuel Consumption |
325g/kw/h
|
|
| Power output type |

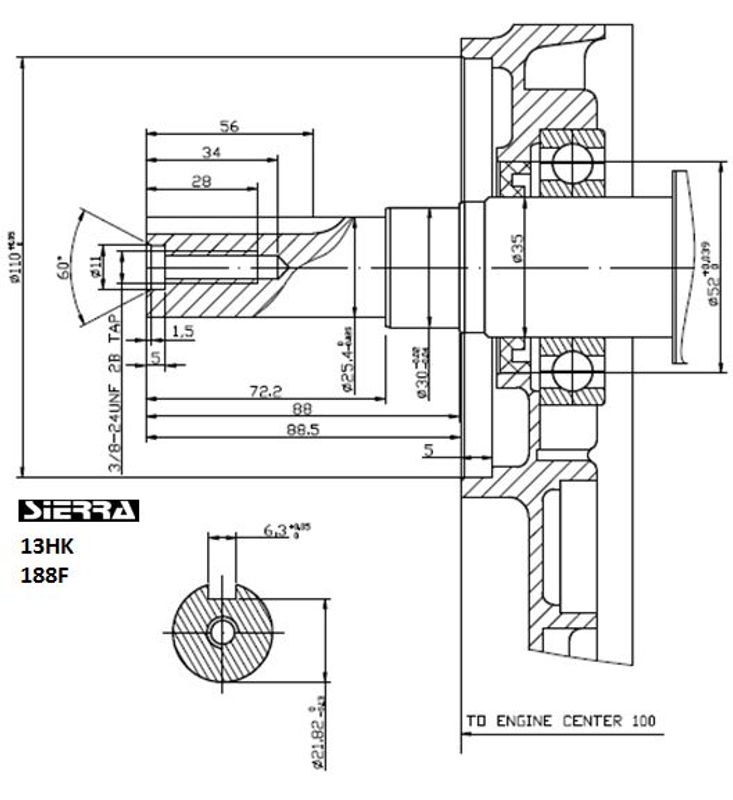

Cone slot 1:5.1:5333. Metric thread. Inch thread.
Keyway. By drawing custom |
|
| Output status |
crancshaft 1:1/2:1
|
|
| Output shaft turn |
Left
|
|
| Dimensions(LxWxH) |
515x420x490mm / 515x450x490mm
|
|
| Net weight |
31kg
|
|
| Air Cleaner |
Semi-dry;Oil bath;Dual
|
|

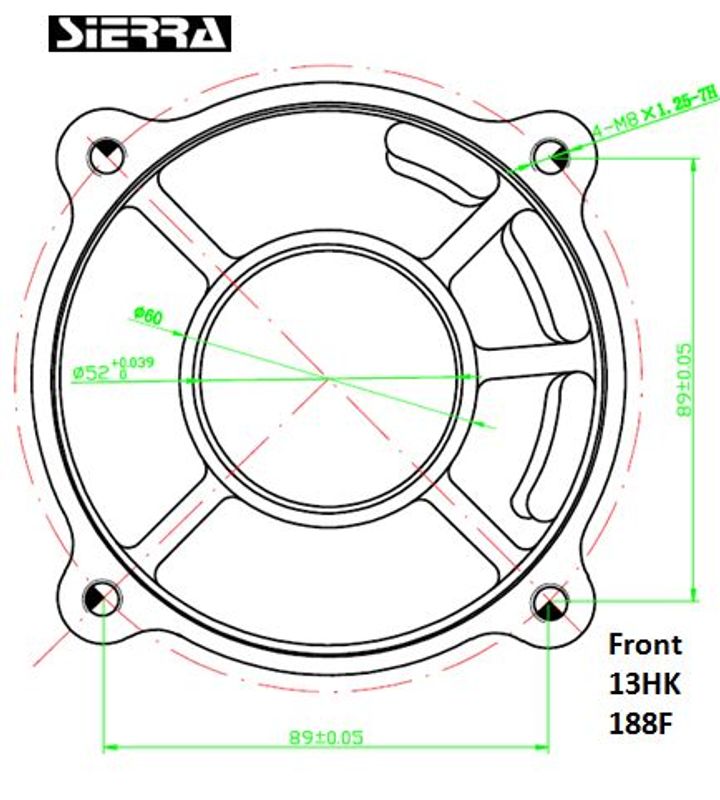

Industristandard 188F motor - 13HK - standard innfesting
